Product Details:
|
1.Products advantages:

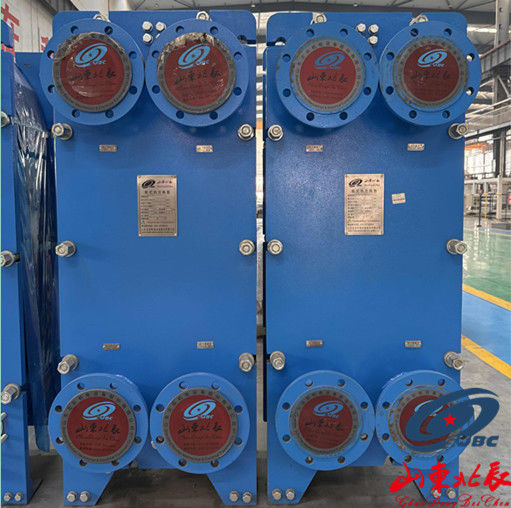

Shandong Beichen has all registered level products of detachable plate heat exchangers A1-A6, which are first-level energy-saving registered, AHRI certified, and has nearly 50 years of production experience.
2. Standard product parameter range:
|
No. |
Type |
Numeric |
|
1 |
Effective Heat Exchange Area Of Single Plate(M2) |
0.05㎡—3.8㎡ |
|
2 |
Single Assembly Area(M2) |
15㎡ |
|
3 |
Equipment Pressure (Mpa) |
1.6MPa |
|
4 |
Number Of Heat Transfer Units (NTU Value) |
2-12 |
|
5 |
Inlet And Outlet Diameter(mm) |
50mm-550mm |
|
6 |
Heat Treatment Capacity Per Hour(M³/H) |
0-5000m³/H |
3. Products features:
High efficiency and energy saving, low operating cost; compact structure, small footprint; reliable quality, long service life; easy maintenance and cleaning.
4. Application scenarios:
Mainly used in liquid-liquid and steam-liquid heat exchange occasions in the fields of heating and air conditioning, electricity, petrochemicals, coal mining and metallurgy, food, medicine, electronics, etc.
